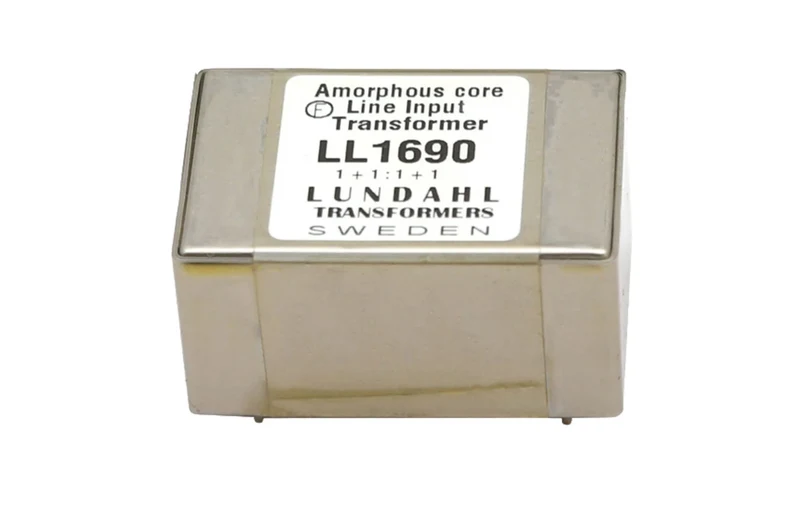

LL1690 Lundahl - 1+1:1+1 phase splitting Line input transformer - nucleo armorfo e rame Cardas

LL1690 Lundahl - trasformatore per ingresso linea bassi livello di segnale e alte impedenze. Nucleo amorfo. Eccellente Phase splitter. Info collegamenti nel datasheet

Turns ratio: 1 + 1 : 1 + 1

Dimensions (L x W x H above PCB, in mm) 42 x 28 x 22

LL1690 is a high-level line input transformer with an uncut cobalt-based amorphous strip core. The transformer is designed for high end audio applications such as tube amplifier line input with or without phase splitting. The windings are arranged to give a high degree of symmetry if the transformer is used for phase splitting. The dual-coil structure also greatly improves immunity to external magnetic fields from e.g. power supplies and motors. Primary and secondary windings are separated by electrostatic shields.. The transformer is housed in a mu-metal can.
