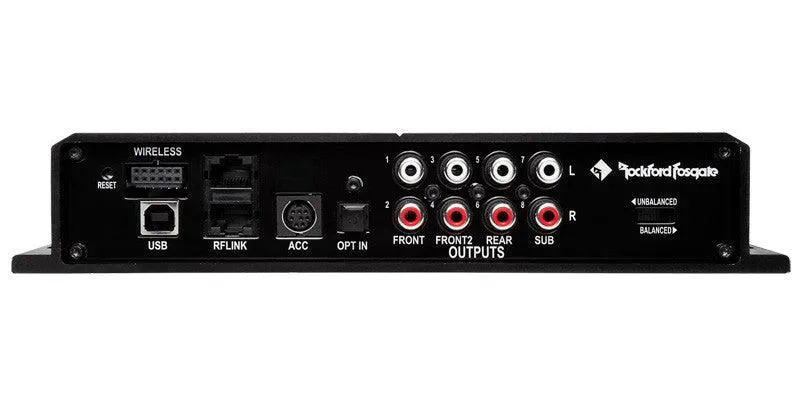

ROCKFORD FOSGATE 3SIXTY.3 GRAPHIC EQUALIZER 8-Channel Interactive Signal Processor w/ 248 Band Parametric EQ

3SIXTY.3
8-Channel Interactive Signal Processor w/ 248 Band Parametric EQ

The 3Sixty.3 is the ultimate signal processor that can function as an OEM integrationblack bo or a complete surround sound DSP. Featuring 8-channels of interactive signal processing, it can handle the most complex system design.

• 8-channel balanced differential RCA inputs
• Selectable balanced/unbalanced output
• 8-channel high level input with signal sense turn-on
• Auxiliary RCA and optical inputs
• Interactive graphic user interface controlled via laptop (windows pc)
• 248 bands of equalization for OEM integration or aftermarket tuning
• Full phase control
• Time delay
• Digital signal processing with OEM integration capabilities
• Bluetoot connectivity with A2DP wireless audio streaming
• Programmable dual function remote (Master Volume, Sub Volume, Sub EQ)
• Up to 12dB of output gain (up to 8V out)
• Up to four programmable EQ presets
• Multiple slope and class independent crossovers
• Remote turn-on in/out function with adjustable turn-on delay

Configuration:Digital Signal ProcessorOperating Voltage:9 - 16 VDCFrequency Response:20Hz - 20kHz +/- 0.5dBInput Impedance:10k OhmsOutput Impedance:100 OhmsSignal Input:8 RCA Inputs
2 AUX RCA Inputs
8-Channel High-Level Input
Optical-InSignal Output:8 RCA OutputsInput Voltage:Low Level (RCA): 0.1V to 2V
High Level: 0.1V to 28V
AUX: 0.1V to 1.0VOutput Voltage:8 V @ 0.1% THDGain:Up to 12dBTHD+N:Signal-to-Noise:RCA: >105dBA (A-weighted)
Optical: >110dBA (A-weighted)
AUX: >105dBA (A-weighted)Crossover Type:Settings: All-Pass/High-Pass/Low-Pass/Band-Pass/Shelf
Class: Selectable LinkwitRiley/Bessel/Butterworth/ChebychevCrossover Frequency:Variable from 20Hz to 20kHzCrossover Slope:Selectable Slope:
12dB/Octave
24dB/Octave
36dB/Octave
48dB/OctaveEQ Frequency Centers:Channels: Front/Front2/Rear/Sub
Frequency Bands: 31
Frequency Centers: 20Hz - 20kHzEQ Frequency Controls:Delay: 0 to 10 msec
Selectable Q: 0.1 to 6.0
Presets: 4 AssignableMounting_TrunkShipping Weight:4.65 Lbs. (2.10 Kg)Dimensions (H x W x D):1.69" x 9.29" x 5.02"
(4.3 cm x 23.6 cm x 12.75 cm)
